TBHD: Heavy Duty Tooth Bar for Sub-Compact Tractors

Disclaimer: Designs, specifications, features and information are subject to change without notice.

(4 customer reviews)

$382.00$469.00

The Heavy Hitch Heavy Duty Bucket Tooth Bar is the heavy duty tool you need to increase your bucket capacity and improve digging performance.



Universally compatible: Our 46″, 58″, 64″, and 70″ tooth bars use our clamp-on interface to be universally compatible with your tractor bucket. Clamp on tooth bars install simply with 5/8″ set screws in each tooth shank. All you need is a 5/16″ Allen wrench to install.



Select John Deere models: If your cutter edge has holes running horizontally across it, the 61″ or 73″ HD is the model you want. It will bolt on using a number of holes in the cutting edge.

If you’re unsure of fitment, call us at 1-888-337-8999.



Comes standard with a super durable finish in your choice of Green -G (matches John Deere Green), Black -B, Orange -O (matches Kubota Orange), or Red -R (matches Massey Ferguson Red) environmentally friendly powder coat. Select color and size when ordering.



Clamp-on toothbars are universally compatible with heavy duty buckets:



TB466HD-B – Black (46″ HD)
TB466HD-G – Green (46″ HD)
TB466HD-O – Orange (46″ HD)
TB466HD-R – Red (46″ HD)



TB587HD-B – Black (58″ HD)
TB587HD-G – Green (58″ HD)
TB587HD-O – Orange (58″ HD)
TB587HD-R – Red (58″ HD)



TB648HD-B – Black (64″ HD)
TB648HD-G – Green (64″ HD)
TB648HD-O – Orange (64″ HD)
TB648HD-R – Red (64″ HD)



TB708HD-B – Black (70″ HD)
TB708HD-G – Green (70″ HD)
TB708HD-O – Orange (70″ HD)
TB708HD-R – Red (70″ HD)



Bolt-on heavy duty tooth bars are compatible with John Deere heavy duty buckets only and designed to line up with the John Deere hole pattern:



TB617HD-B – Black (61″ HD) (Actual length is 60″)
TB617HD-G – Green (61″ HD) (Actual length is 60″)



TB738HD-B – Black (73″ HD) (Actual length is 72″)
TB738HD-G – Green (73″ HD) (Actual length is 72″)

Clear

Description

All Heavy Hitch products are made in the USA by a Minnesota company you can trust. Be confident in the quality and longevity of our products – we use only American made steel and qualified welders.

Heavy Hitch Heavy Duty Bucket Tooth Bar Details:

  • Features heavy duty Pengo 230 shanks: 6 on the 46″, 7 on the 58″ and 61″, 8 on the 64″ and 73″.
  • Teeth are replaceable and interchangeable.
  • Works with cutting edges that are 5/8″ to 3/4″.
  • Smooth design prevents mud and debris from hanging on.

How to measure for your tooth bar:

  1. Measure the inside width of your bucket. This will determine what width you will need.
  2. Measure the height of your cutting edge. This Heavy Duty Tooth Bar will fit on a cutting edge of 5/8″ – 3/4″. If your cutting bar is less than 5/8″, you will need our Standard Tooth Bar.

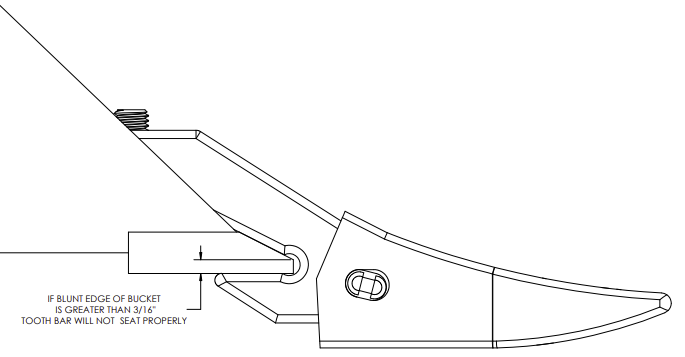

How to measure for a toothbar

CUSTOM ORDERS AVAILABLE

Custom bucket tooth bar options are available for other size buckets and cutting edges. Contact us to start a custom order.

Please Note:

The bolt-on toothbar will work on cutting edges that are 5/8″ to 3/4″ thick and matches the John Deere hole pattern and cutting edge. Please call us at 1-888-337-8999 or email us for help selecting another model that will work with your specific tractor.



SKUs

Clamp-on (universally compatible):

46″: TB466HD-B, TB466HD-G, TB466HD-O, TB466HD-R
58″: TB587HD-B, TB587HD-G, TB587HD-O, TB587HD-R
64″: TB648HD-B, TB648HD-G, TB648HD-O, TB648HD-R
70″: TB708HD-B, TB708HD-G, TB708HD-O, TB708HD-R



Bolt-on (John Deere models only):

61″: TB617HD-B, TB617HD-G
73″: TB738HD-B, TB738HD-G



Disclaimer:
Designs, specifications, features and information are subject to change without notice.

Additional information

Weight 60 lbs
Dimensions 73 × 12 × 3 in
Actual Product Dimensions

46 x 12 x 3 in, 58 x 12 x 3 in, 60 x 12 x 3 in, 64 x 12 x 3 in, 70 x 12 x 3 in, 72 x 12 x 3 in

Color

Black, Green (matches John Deere Green), Orange (matches Kubota Orange), Red (matches Massey Ferguson Red)

Length

46"HD, 58"HD, 61"HD, 64"HD, 70"HD, 73"HD

Cutting Edge Thickness

5/8" – 3/4"

4 reviews for TBHD: Heavy Duty Tooth Bar for Sub-Compact Tractors

  1. Steven Turgeon

    I purchased HH Tooth bar 10 months ago for my 1023e and this is my “go-to” piece of equipment. It will allow your tractor to perform jobs that would normally be difficult. The coolest thing so far was a ball of barbed wire that was partially buried on our land well before we owned it. This was a huge ball of wire that was entangled into roots, rocks and other debris. The HH tooth bar pulled this mess apart and got every scrap of wire out of this place. it moved the rocks, roots and uprooted the trees to make it happen. This is the most versatile accessory I have for JD 1023e.

  2. Ron D (verified owner)

    I echo this attachment is a game changer. If your doing an serious dirt or brush work with a compact tractor, then this is a must have – totally transforms your bucket into a remarkably more capable tool. Initially I thought it was expensive, but after using it, it is worth EVERY PENNY. Get this if you need to do more serious work with your compact tractor. I put mine on a JD 3720 with 61″ HD bucket.

  3. Scott Royle

    I have this mounted on the bucket of my John Deere 3025E. I have used this as a rake (pushing and pulling), digging, lifting, and carrying. It’s gotten a pretty serious workout from me as I have been clearing land, to include logging and handling slash. I have carried logs on the teeth. It is like a Timex watch; takes a licking and keeps on ticking. It takes everything I dish out and shows no sign of damage. The tooth bar is stronger than my tractor’s hydraulics. It is one of the best attachments I got for my tractor.

    • Heavy Hitch (verified owner)

      Thanks, we are very happy that you like it and thanks you for the review!

  4. Robert Piantino

    After debating for 5 years, I finally made the decision to buy one of these bars. What was I waiting for? This thing is a game changer, and built to last. One of the main reasons I chose this brand was I wouldn’t be drilling into the sides of my bucket. Second was the ease of installing, I don’t want to be looking all over for the bolt or nut I just dropped. Third was replaceable teeth. Last, but just as important, AMERICAN made!! The only regret was not buying sooner.
