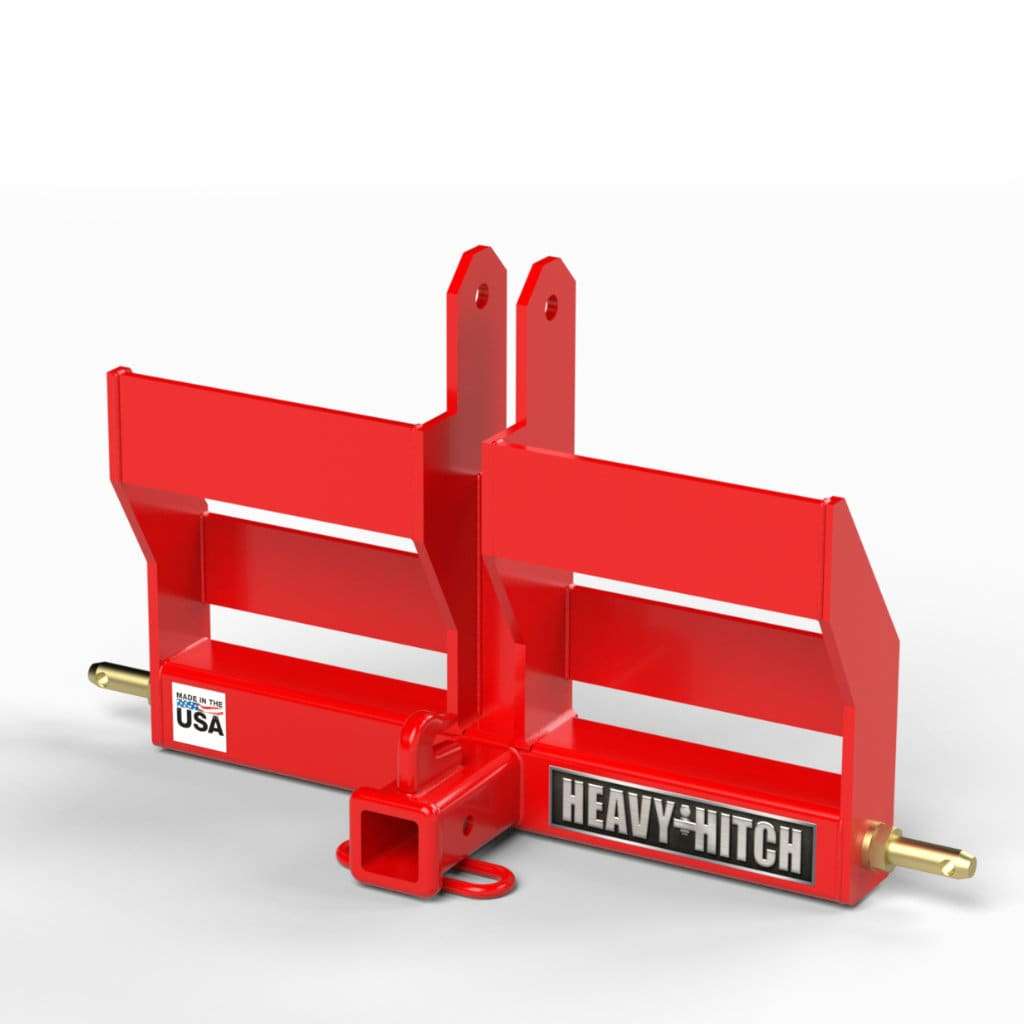

HH1DB: Category 1, 3 Point Hitch Receiver Drawbar With Dual Weight Bracket

Disclaimer: Designs, specifications, features and information are subject to change without notice.

(7 customer reviews)

Do you feel this product is perfect for a friend or a loved one? You can buy a gift card for this item! Gift this product

-

Or Find a Dealer near you

Our indestructible 3 point hitch receiver drawbars redefine the tractor ballast box. With our receivers, you no longer have to choose between adding weight and adding tools to get the job done. Now you can do both. Just add suitcase weights for counterweight and hook up to any 2” receiver compatible attachment.

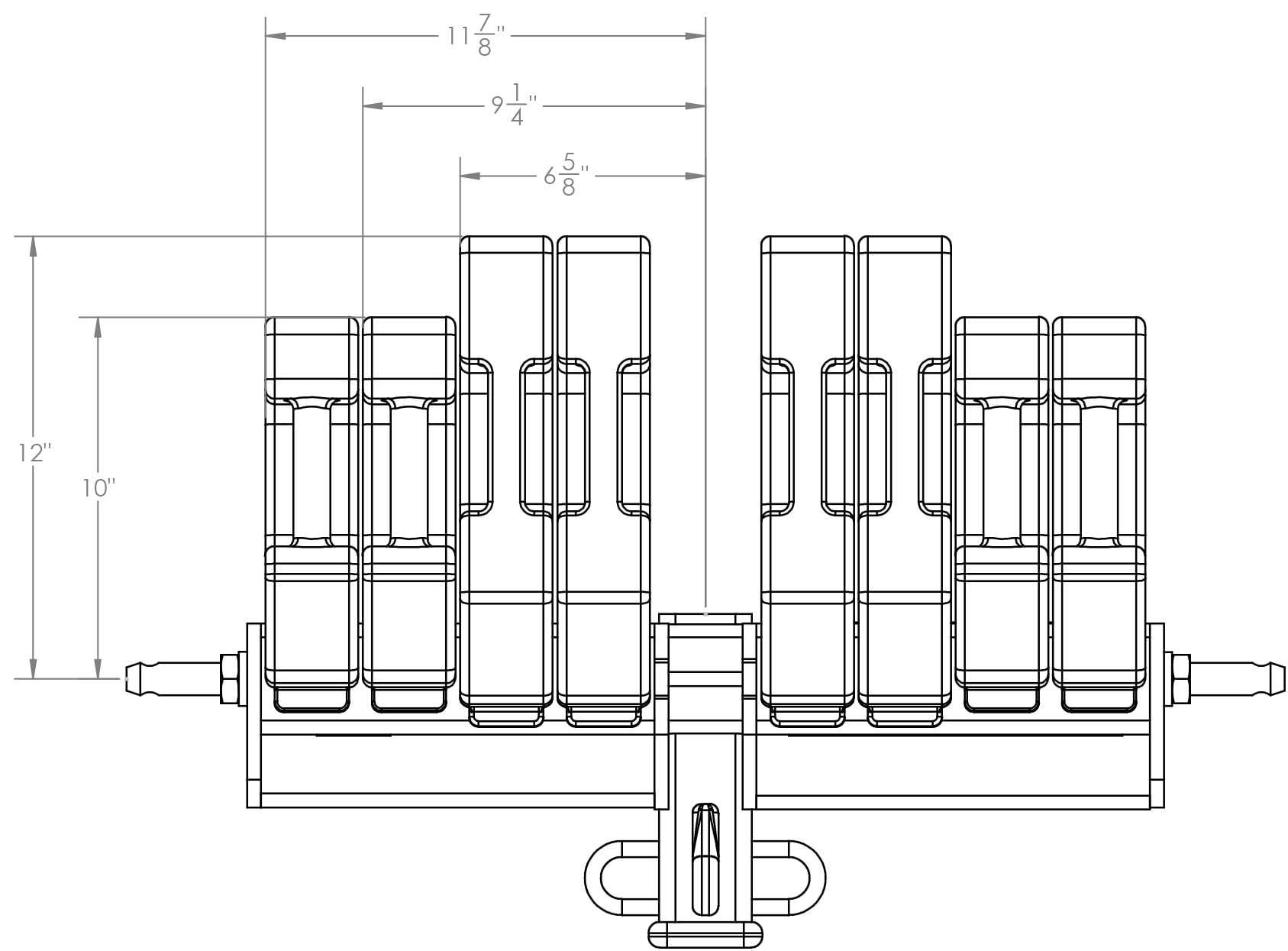

The Category 1, 3 Point Hitch Receiver with Dual Weight Bracket Heavy Hitch is made for sub compact tractors and compact utility tractors up to 45 horsepower and is built to the ASE Standard S278.5. This 3 point hitch receiver comes with 7/8″ lower pins and uses a 3/4″ top pin. It also allows up to sixteen 42 pound or 70 pound suitcase weights to be attached in either direction, forward or back, depending on clearances. This super duty hitch has 3/16” wall thickness on the lower 3×3” square tube opposed to ⅛” on the regular; also includes a welded on ⅜” chain hook. Plus, it has a 2 inch receiver hitch for more pulling options.

Category 1 tractors are rated up to 45 horsepower. Not sure if your 3 point hitch receiver is category 0 or 1? Just measure the lower 3 point hitch holes. Category 0 will be 5/8″ diameter and 1 is 7/8″ diameter.

Compatible with:

  • All 3 point hitch receiver category 1 systems
  • Most 3 point quick hitch systems
      • Will not work with the SpeeCo Quick Hitch
      • Will not work with the QH05
  • John Deere iMatch systems built to the ASE Standard S278.6
  • QH10 and QH15

Comes standard with a super durable finish in your choice of Green -G (matches John Deere Green), Black -B, Orange -O (matches Kubota Orange), Red -R (matches Massey Ferguson Red) environmentally friendly powder coat. Select color when ordering.



SKUs: HH1DB-B, HH1DB-G, HH1DB-O, HH1DB-R



Top link pin sold separately.

Description

All Heavy Hitch products are made in the USA by a Minnesota company you can trust. Be confident in the quality and longevity of our products – we use only American made steel and qualified welders.

Category 1, 3 Point Hitch Receiver Drawbar with Dual Weight Bracket Details:

  • Constructed of 3/8″ thick steel plate and 3″ square box tubing. No cheap angle iron and straps.
  • Works with or without a 3 point quick hitch system.
  • Compatible with:
    • Will work with most 42 pound suitcase weights from John Deere, Massey Ferguson, Kubota, Case International, New Holland and others. Contact us if you have questions on fitment.
    • Most 3 point quick hitch configurations and quickly attaches to John Deere, Kubota, New Holland, Case International, and more.
      • Will not work with the SpeeCo Quick Hitch.
  • One of the most popular 3 point attachments for John Deere 1 Series sub compact tractors: 1023E, 1025R, 1026R.



If you have a John Deere iMatch, you will need the bushing or bushing set.



Please call (1-888-337-8999) or email us if you have any questions.



Disclaimer
Designs, specifications, features and information are subject to change without notice.

Additional information

Weight 63 lbs
Dimensions 25 × 10 × 19 in
Color

Black, Green (matches John Deere Green), Orange (matches Kubota Orange), Red (matches Massey Ferguson Red)

7 reviews for HH1DB: Category 1, 3 Point Hitch Receiver Drawbar With Dual Weight Bracket

  1. Donald Olwert (verified owner)

    Fantastic product and great service from Heavy Hitch so far! Simple, easy, works great! I do have one issue but it is NOT a product defect…One of my left pins bent slightly and I don’t know how to replace it. The nut is on the inside of the housing and curious if there are any tips/tricks to being able to replace the lift pin.

  2. Richard Stuart Gilbert (verified owner)

    This double rack works very well with my Kubota B2601 and my Woods Quick Hitch. In fact, the Quick Hitch gives me more clearance to add additional inside weights without any getting in the way of the tractor’s lift arms sway bars. I am very pleased with this hitch. For most light loader work, I can use about 328 lbs of weights on the inside rack. This makes the unit even more compact. For heavy loader work, I can easily add weights to the back bracket.

  3. Chad Ringhand (verified owner)

    This hitch very heavy duty! The welds and paint are excellent quality. Everything I purchased worked as it was described. I’m planning on using this on a JD 1025r.

  4. Michael Davis (verified owner)

    Bought a few months ago and have been using on both of my JD compact tractors. Extremely please. Well made, shipped on time and packaged well. Am going to buy another one so I don’t have to move it between tractors since our winter time non-mowing season has more loader work and moving horse trailers around the farm for both tractors.

  5. Bob T. (verified owner)

    Totally pleased, design, construction, welds, finish and packing could not be better. Now add prompt friendly service and you have an American business that deserves to prosper. Value, no excuses

    • Heavy Hitch (verified owner)

      Thank you for your comment, we really appreciate it! Shannon

  6. Craig Olmsted (verified owner)

    I just received my hitch. It came very well packaged inside of the box.
    The welds and the paint are superb !! This is a high quality item that’s going to last a long time !!

  7. f-3b.com

    Great ballast rack for my John Deere 2025r. The hitch allows me to move my trailer with ease.
    I can fit 6-70 lbs and 8-40lbs suitcases.
